Custom Polyurethane Rollers Manufactured in Quebec
For conveyors, material handling, mining and OEM equipment
Solid or PU-coated rollers engineered for abrasion resistance, load capacity, and long service life. Precision-machined to your drawing up to 80″ diameter, with crowned profiles for reliable belt tracking.
Request a quote for this partTechnical specifications
- Material
- Cast PU bonded to steel or aluminum core
- Shore hardness
- 60A – 95A
- Sizes
- Custom to drawing, up to 80″ diameter
- Temperature range
- -40°C to +80°C
- Bonding
- Chemical bond to metal core
- Surface finish
- Smooth, grooved, or crowned

If the roller body stays in the conveyor and only the contact surface needs replacing, see our polyurethane roller sleeves - a separate tubular cover fitted over the existing roller.
Solid polyurethane rollers vs PU-coated cores

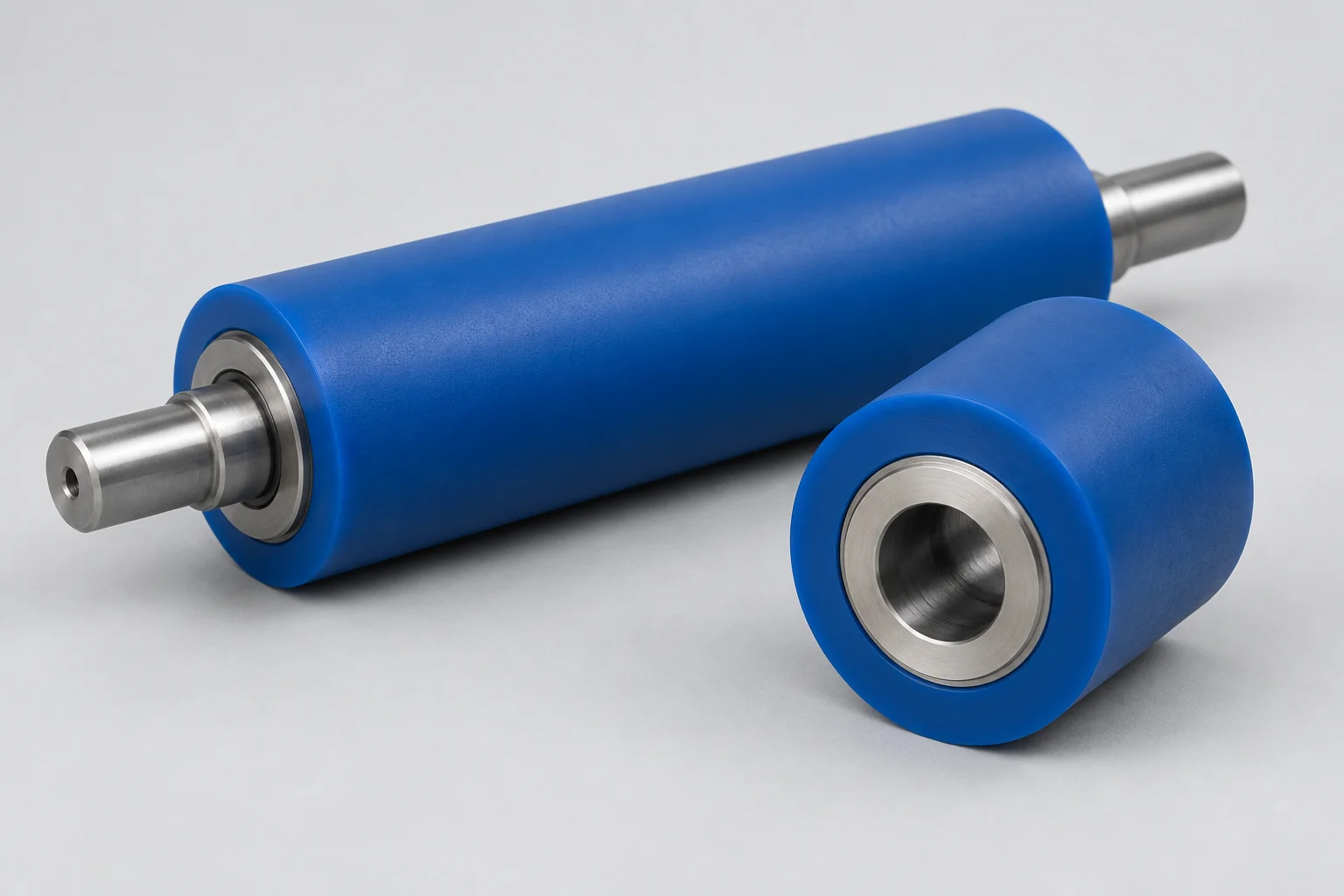

We build rollers two ways. A solid polyurethane roller is cast entirely in PU around a shaft or bore, well suited to lighter loads and smaller diameters where the whole rolling body benefits from the material's resilience. A PU-coated roller bonds a polyurethane band onto a steel tube or hub, combining the structural strength of the metal core with an abrasion-resistant, low-noise contact surface. The right choice depends on load, diameter, and how the roller mounts in your equipment.
Polyurethane roller specifications
| Specification | Range or option |
|---|---|
| Diameter | Custom to drawing, machined in-house up to 80″ |
| Shore hardness | 60A to 95A, selected for load, speed and contact surface |
| Core types | Solid polyurethane on a shaft or bore; polyurethane bonded to a steel or aluminum core; recovered existing core |
| Surface profile | Smooth, grooved or crowned |
| Tolerances | Machined to your drawing on diameter, concentricity and bore fit |
| Operating temperature | -40°C to +80°C |
Hardness is the main lever on roller behaviour; our polyurethane Shore hardness chart explains how each range affects grip, load capacity and wear.
Roller types we manufacture
Willsup produces the full range of conveyor and drive rollers:
- Idler rollers that support and shape the belt along its run
- Drive rollers that transmit torque to move the belt
- Guide rollers that keep the belt or load aligned
- Conveyor rollers for general belt support and transfer
Choosing polyurethane, rubber or steel
Polyurethane can add resilience and abrasion resistance at the contact surface. Results depend on formulation, load and environment. Compare materials under your operating conditions; no material outperforms the others in every application.
Crowned profiles and machining tolerances
Rollers can be finished smooth, grooved, or crowned (a slightly larger diameter at the center) to help center and track the belt automatically. Every roller is precision-machined in-house to your drawing, with tight tolerances on diameter, concentricity, and bore fit so the part runs true in the assembly.
Polyurethane roller manufacturer for conveyors and OEMs
Willsup has manufactured custom polyurethane parts in Pointe-Claire, Quebec, since 1971. Mold design, casting, metal-to-polyurethane bonding and precision machining all happen under one roof, so a roller moves from drawing to finished part without passing between subcontractors.
For conveyor operators, we produce urethane conveyor rollers for belt support, drive and guidance, as new assemblies or by recovering existing cores. For OEM equipment manufacturers, we cast custom urethane rollers to your drawing or specification, from a single prototype to a production run, and keep the mold on file for repeat orders.
Our rollers run in material handling, mining, aggregate processing and OEM equipment, wherever load, abrasion and uptime matter. For a typical application, see our material handling page. Parts ship across North and South America. Need a load-bearing wheel instead of a roller? Explore our polyurethane wheels.
Specifying durable urethane rollers
Service life depends on load per roller, speed, temperature, conveyed material and duty cycle. Provide the finished diameter, face length, shaft journals, bore, runout and surface profile. Identify whether traction, guidance or protection of the conveyed surface matters most.
Roller recovering or a new assembly?
For a recovering review, send photographs of the core, journals and worn surface. Metal condition and the feasibility of preparing a bonding surface must be checked. A damaged core may need repair or replacement. Define the acceptance criteria for the finished roller before manufacturing.
A metal-core roller, an all-polymer roller and a slip-on sleeve have different mounting and load requirements. Do not assume interchangeability from outside diameter alone. For a tubular blank to machine, see polyurethane tubes. For a special assembly, explore custom polyurethane products.
Where polyurethane rollers are used
- Conveyor systems
- Idler rollers
- Drive rollers
- Guide rollers
- Feed rollers
- Pinch rollers
Why source polyurethane rollers from Willsup?
- Solid PU or PU-coated metal cores
- In-house precision machining up to 80″ diameter
- Metal-to-PU bonding under one roof
- Crowned profiles for reliable belt tracking
- Roller recovering service available
- Lower noise and vibration than steel rollers
Related products
Questions about polyurethane rollers
-
Can you recover existing roller cores?
Yes. We strip the old material, inspect the core, and re-cover it with the polyurethane formulation that best fits your application. This saves the cost of new cores. -
What surface finishes are available?
Smooth, grooved, crowned, or custom profiles. The right finish depends on your application: grip, tracking, material release, or a combination. -
What is the maximum roller diameter you can produce?
We machine rollers up to 80 inches in diameter in our machining shop. For larger sizes, contact us to discuss your requirements. -
Should I choose a solid PU roller or a PU-coated core?
It depends on load and size. Solid polyurethane rollers suit lighter loads and smaller diameters, where the whole body benefits from PU resilience. PU-coated rollers bond a polyurethane band to a steel or aluminum core for higher load capacity and larger diameters. We help you choose based on load, speed, and how the roller mounts.
Ready to spec your part?
Tell us your load, size, and operating conditions and we will recommend the right formulation.
Request a quote for this part
