Is a roller sleeve the same as roller recovering?

No. A sleeve is supplied as a separate tubular cover. Recovering generally involves removing an existing covering and applying a replacement to the core. Confirm the construction of your roller before selecting the replacement route.

Will a polyurethane sleeve fit any conveyor roller?

Fit depends on the roller dimensions, sleeve design, material and mounting arrangement. Send the actual roller measurements and assembly details for review rather than selecting on nominal diameter alone.

Which Shore hardness should I choose?

Hardness is one input alongside load, speed, contact surface and environmental exposure. If the current hardness is unknown, provide a sample or the existing specification and describe the performance required.

Can I specify a sleeve for food-contact equipment?

State the intended contact and cleaning conditions in the enquiry. Any required compliance must be confirmed for the specific formulation and intended use; polyurethane as a material name does not establish food-contact suitability.

What information is needed for a quotation?

Provide the roller outside diameter, covered length, desired finished diameter, operating conditions and quantity. Drawings and photographs help clarify mounting access, clearances and the condition of the existing roller.

Polyurethane Roller Sleeves for Conveyor Applications

Slip-on polyurethane covers for the rollers already in your conveyor

Specify a polyurethane contact surface around the rollers already in your conveyor. A roller sleeve is a separate tubular component fitted over a roller body; its dimensions and retention method must suit the roller and the operating conditions.

Request a quote for this part

Technical specifications

Material: Cast PU
Construction: Slip-on sleeve
Shore hardness: Selected per application
Dimensions: Custom to drawing or sample
Retention: Defined per assembly
Manufacturing: Pointe-Claire, Quebec

Send Willsup your roller drawing, dimensions and application details to discuss a custom polyurethane roller sleeve project. Identify the problem you want to address - surface wear, product marking, grip, or a replacement sleeve that no longer fits your requirements.

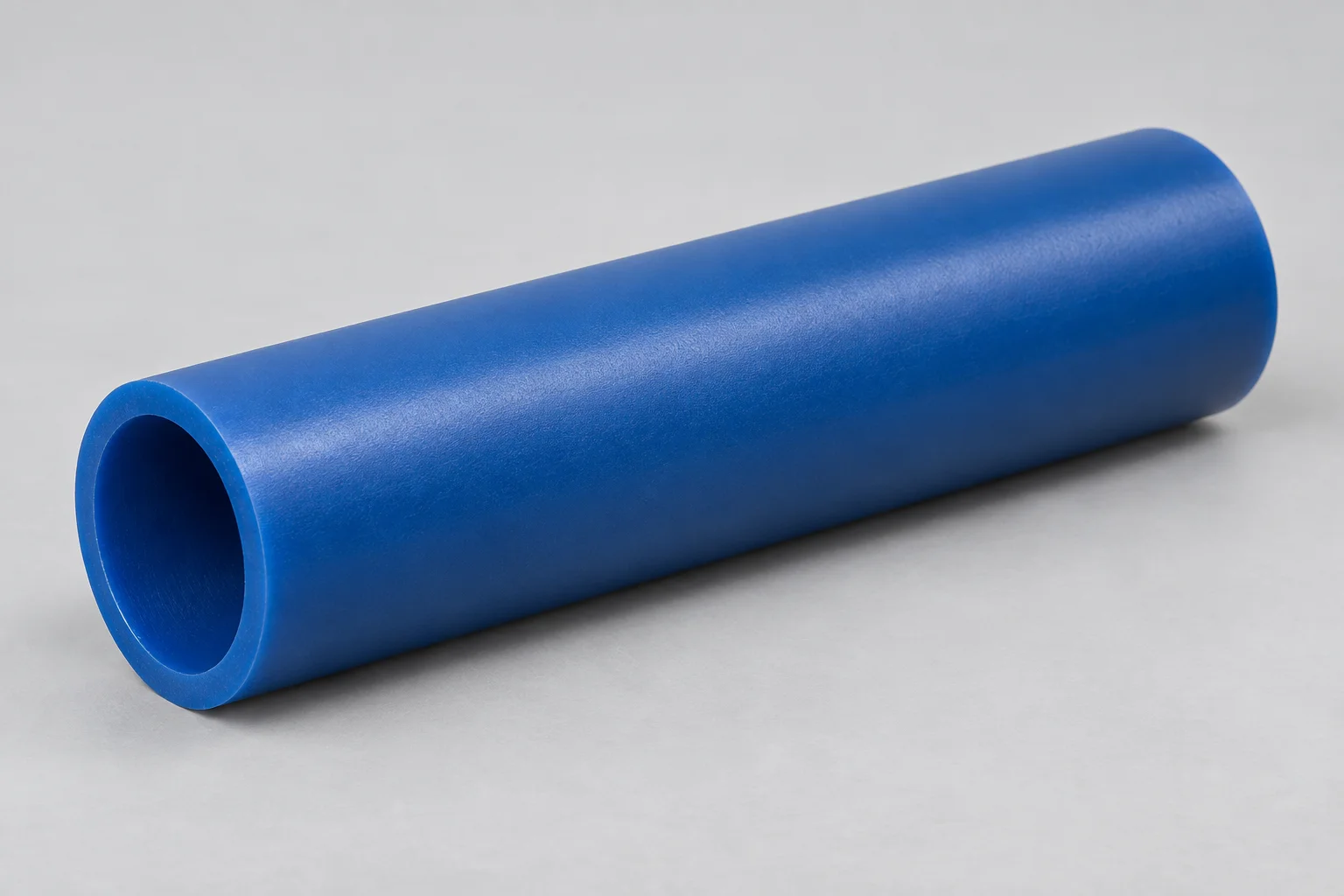

Blue polyurethane roller sleeve, a tubular cover open at both ends, shown on its own — A roller sleeve is a separate component: a polyurethane tube, open at both ends, made to fit over a roller body.

Roller sleeves, bonded covers or complete rollers?

The terms roller cover and roller sleeve are sometimes used interchangeably. Confirm how the polyurethane attaches to the roller before specifying a replacement.

Option	Construction	What to establish
Separate roller sleeve	A tubular cover fitted over the roller body	Compatible roller dimensions, installation access and retention method
Bonded polyurethane covering	Polyurethane bonded to a prepared core	Core condition, bond requirements and finished geometry
Complete polyurethane roller	Roller supplied as a finished component	Shaft or bore details, mounting arrangement and operating requirements

If your existing cover is bonded to its core, explore Willsup’s custom polyurethane rollers and recovering services. A separate sleeve should be evaluated against the assembly’s design rather than assumed to be interchangeable with a bonded covering.

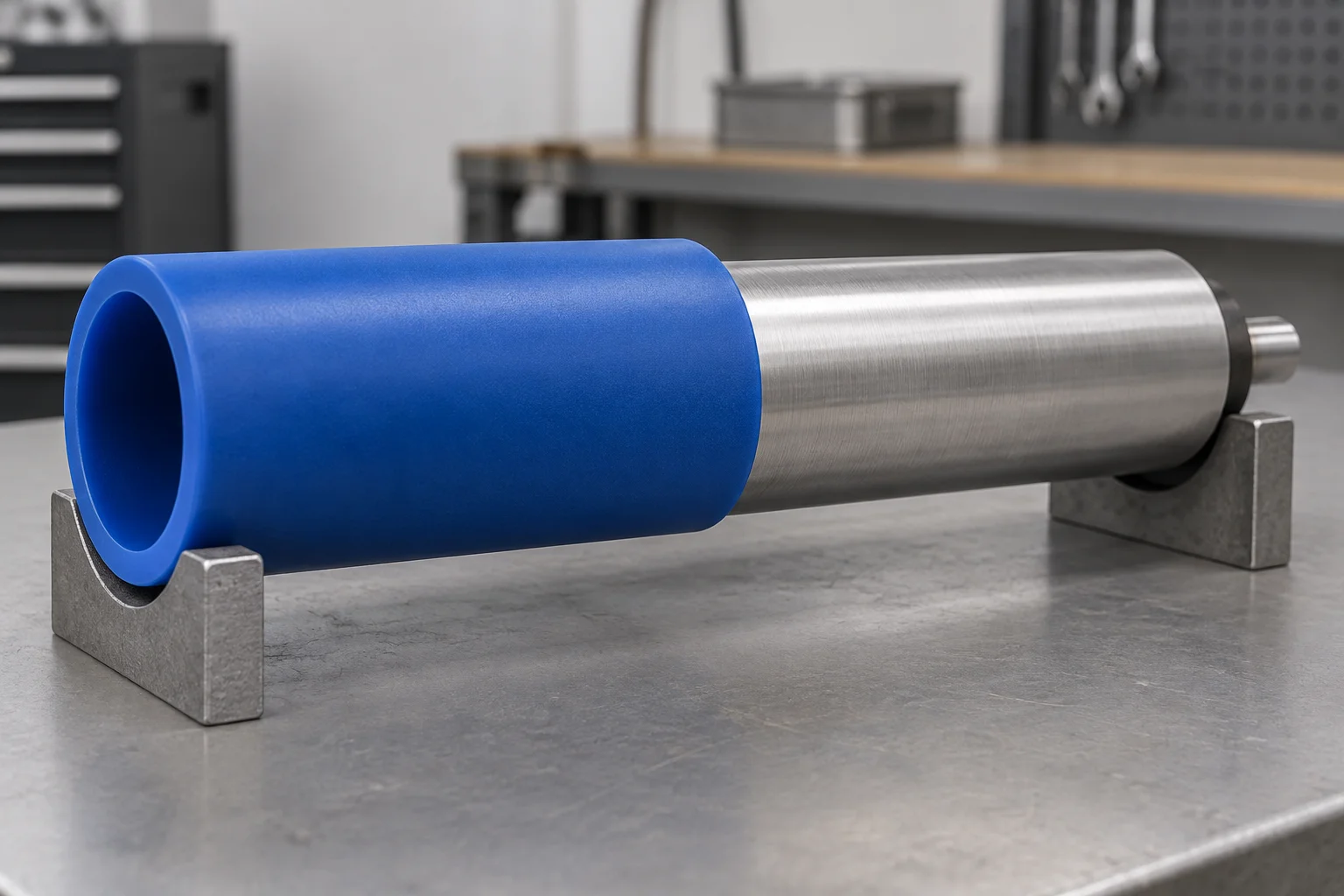

Blue polyurethane sleeve partly slid onto a steel roller, showing the bare roller body and the covered section — Fitted over the roller body, the sleeve covers the working face while the roller, its shaft and its bearings stay in place.

How to specify polyurethane roller sleeve dimensions

Begin with the metal roller’s outside diameter and the length of the surface that needs covering. Include the required finished outside diameter and any clearance limitations in the conveyor.

The sleeve’s free inside diameter and the roller’s outside diameter are separate dimensions. Their relationship must be defined for the selected material and mounting method. Do not assume that matching the two nominal diameters will produce the required fit.

Information	Details to send
Roller body	Outside diameter, face length, material and surface condition
Required covering	Covered length, finished outside diameter and drawing tolerances
Existing sleeve	Free dimensions where measurable, material information and wear photographs
Conveyor layout	Available clearance and access to the end of the roller
Operation	Roller speed, loading, duty cycle and conveyed material
Environment	Temperature, moisture, oils and cleaning products
Order	Quantity, delivery location and target date

Select the material around the application

The appropriate polyurethane formulation depends on more than hardness. Contact conditions, speed, loading and exposure must be considered together.

For handling finished products, specify the contact surface and acceptable marking limits. For traction requirements, describe the conveyed material and any moisture or contamination. For an existing sleeve that wears prematurely, provide photographs and explain where and how the damage develops.

Read our polyurethane Shore hardness guide for background, then supply the operating information needed to review the material selection.

Plan the installation before ordering

Installation access is part of the specification. Identify whether the roller can be removed, whether shafts or bearings obstruct either end, and how the sleeve is retained during operation.

Confirm the installation procedure for the supplied sleeve, including any permitted installation aids, preparation requirements and final inspection criteria. Procedures for another manufacturer’s sleeve may not apply to a different formulation or fit.

Request a roller sleeve project review

Send your drawing or measurements with the application details. Willsup can review the polyurethane manufacturing requirements and confirm project feasibility, specifications and quotation scope.

Send your roller details or call +1 514 694-3111.

Explore related material handling applications.

Where roller sleeves are used

Conveyor rollers
Drive and idler rollers
Material handling lines
Product accumulation zones
Packaging and processing equipment
Replacement of worn sleeves

Why source roller sleeves from Willsup?

Built from your roller drawing, measurements or sample
Formulation selected for contact, speed and loading
Fit and retention defined with the assembly, not by nominal diameter
Mold design, casting and machining under one roof
Canadian manufacturing in Pointe-Claire, Quebec
No MOQ (Minimum Order Quantity)

Polyurethane roller sleeve questions

Is a roller sleeve the same as roller recovering?

No. A sleeve is supplied as a separate tubular cover. Recovering generally involves removing an existing covering and applying a replacement to the core. Confirm the construction of your roller before selecting the replacement route.
Will a polyurethane sleeve fit any conveyor roller?

Fit depends on the roller dimensions, sleeve design, material and mounting arrangement. Send the actual roller measurements and assembly details for review rather than selecting on nominal diameter alone.
Which Shore hardness should I choose?

Hardness is one input alongside load, speed, contact surface and environmental exposure. If the current hardness is unknown, provide a sample or the existing specification and describe the performance required.
Can I specify a sleeve for food-contact equipment?

State the intended contact and cleaning conditions in the enquiry. Any required compliance must be confirmed for the specific formulation and intended use; polyurethane as a material name does not establish food-contact suitability.
What information is needed for a quotation?

Provide the roller outside diameter, covered length, desired finished diameter, operating conditions and quantity. Drawings and photographs help clarify mounting access, clearances and the condition of the existing roller.

Ready to spec your part?

Tell us your load, size, and operating conditions and we will recommend the right formulation.
